3 Zones TT5188 Controller Temperature Thermal Shock Chamber

Brand Name : ASLI

Model Number : TS-252-C

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 800 sets per month

Delivery Time : 40 workdays per year

Packaging Details : standard export plywood case

Internal Dimension : W700xH600xD600

Temperature range : -65~150C

Test Hole : Dia. 50mm

Controller : TT5188

Temperature Recovery Time : within 5 mins

Temperature Conversion Time : within 5 sec

viewing window : optional

Usage : thermal shock test

Contact Now

3 Zones TT5188 Controller Temperature Thermal Shock Test Chamber Price

Product Description

3 Zones TT5188 Controller Temperature Thermal Shock Test Chamber Price is used to test the capability of material structure or composite materials to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period, and therefore understand the chemical changes or physical damages caused by expansion from heat and contraction from cold in the shortest possible time. It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be used as a reference or basis for product improvement.


3 Zones TT5188 Controller Temperature Thermal Shock Test Chamber Price Features:


1.It is divided into three zones: high temperature zone, low temperature zone, and testing zone. The test sample is in static mode.

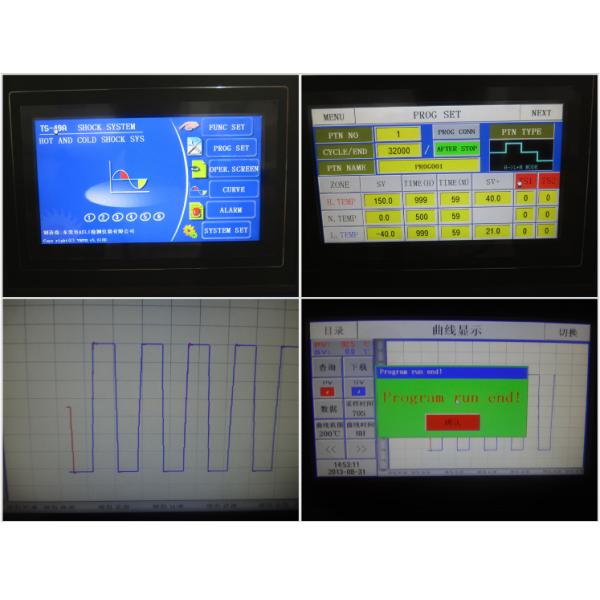

2.Using touch-control graph control as operation interface, easy to operate.
3.Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.
4.For high temperature shock or low temperature shock, max. time is up to 999H, and max. circulation cycles are 9999 times.
5.The system can be used for automatic Circulation Shock or manual selective shock.
6.Adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.
7.Can entering normal temperature. RS-232 and RS-485 communication.

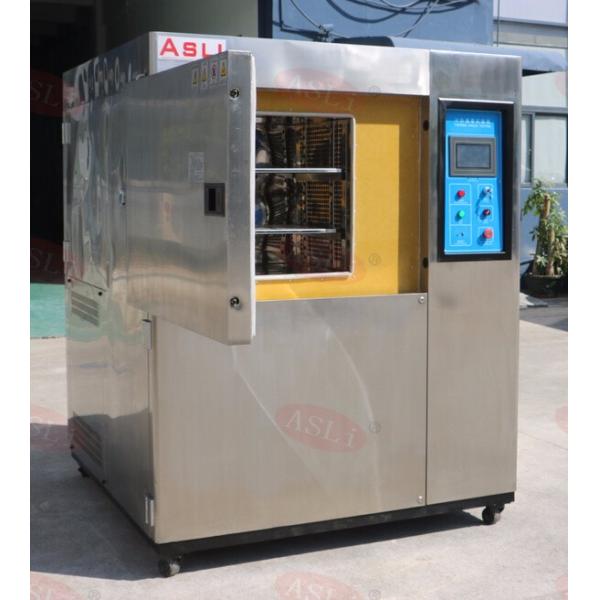

3 Zones TT5188 Controller Temperature Thermal Shock Test Chamber Price Pictures

3 Zones TT5188 Controller Temperature Thermal Shock Chamber

3 Zones TT5188 Controller Temperature Thermal Shock Chamber

3 Zones TT5188 Controller Temperature Thermal Shock Chamber

3 Zones TT5188 Controller Temperature Thermal Shock Test Chamber Price Technical Parameters
Model TS-49(A~C) TS-80(A~C) TS-150(A~C) TS-252(A~C) TS-450(A~C) TS-900(A~C)
Internal Dimension WxHxD (mm) 400x350x350 500x400x400 600x500x500 700x600x600 800x750x750 1000x900x900
External Dimension WxHxD (mm) 1400x1800 x1400 1550x1950 x1550 1600x2000 x1700 1700x2100 x1750 1800x2200 x1900 2100x2400 x2200

Temperature Range of Testing zone

Type A:-40 °C~+150°C

( 200°C is Optional)

Type B:-55°C ~+150°C

( 200°C is Optional )

Type C:-65°C ~+150°C

( 200°C is Optional)

High temperature Range of Testing zone: +60ºC~+150ºC ( 200ºC is Optional);

Low Temperature Range of Testing Zone: -10ºC~-40ºC / -55ºC / -65ºC

Exposure Time of High/Low Temperature

 Exposure Time of High Temperature: +60°C ~ +150°C (200°C is Optional) 30Mins
Exposure Time of Low Temperature : -10°C~Type A:-40°C / Type B -55°C / Type C -65°C 30Mins
Temperature of Heat-Storing Slot / Heating Time RT~200°C/About 45mins
Temperature of Cool-storing Slot / Cooling Time RT~-75°C/ About 100mins
Temperature Recovery Time / Conversion Time ≤5min/≤5sec
Control Accuracy / Distribution Uniformity ±0.5°C/±2°C
Internal and External Material Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated.
Insulation Material High temperature resistant , high density , formate chlorine , ethyl acetum foam insulation materials
Mechanics P.I.D+S.S.R+ Micro-computer balanced temperature control system


Our concept:


1.Client is first. We are trying to bring maximum profit to our clients and offer best quality products
2.Credibility is the most important.
3.Quality control is our life.
4.Great sense of responsibility.

Customers' Visit ASLi Factory:

3 Zones TT5188 Controller Temperature Thermal Shock Chamber

Short introduction about ASLi factory:


We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. 3 Zones TT5188 Controller Temperature Thermal Shock Test Chamber Price is our star products , and we had obtained the CE certification for this machine .
